YTS41 4-in-1 Oil Condition Sensor

The YTS41 4-in-1 oil condition sensor adopts piezoelectric resonance MEMS elements, through the internal integration of high-precision signal sampling and processing unit, combined with the built-in algorithm, can real-time automatic detection of liquid temperature, kinematic viscosity, density, dielectric constant, water activity, water content, water content, dynamic viscosity of eight indicators.

Sensor measurements：

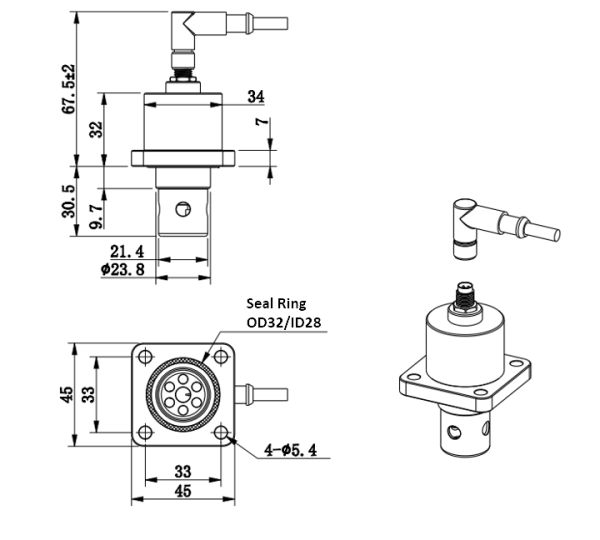

Product Structure：

 Features:

• Imported probes, accurate measurement of viscosity, density and temperature up to eight parameters output online monitoring sensor;
• Fast response, the data refresh frequency every second;
• The outer casing is made of stainless steel and has excellent chemical and pressure resistance. The measurement is not affected by external vibration and is suitable for on-line monitoring of robustness requirements;
• Compact structure, easy system integration, on-site calibration of integrated modules;

Application:

YTS41 is widely applied to online monitor the viscosity and density of lubricating oil, hydraulic oil, gear oil, gasoline, diesel oil, jet fuel, kerosene, biodiesel, ethanol, chemical reagent and coating ink.

YS41 is applied to food processing, laboratory, fuel oil storage and transportation ; Oil refining, wind power and other power industries; Aviation, navigation, railway and other transportation industry;Drilling platform and other maritime engineer, mechanical engineering equipment,transportation vehicle,fuel storage and transportation vehicle, oil handling equipment, chemical test and analysis,oil handling and filter system; Coating, painting and other printing industry, medical equipment,etc.
