YTS31 online density and viscosity sensor uses piezoelectric resonant MEMS components. Through the integrated high-precision signal sampling and processing unit, combined with advanced algorithms, it can automatically detect the density, viscosity and temperature of the liquid in real time.
YTS31 3-in-1 oil condition sensor is easy to use and requires no operator intervention. All tests are done automatically by the sensor. The user can simply install it on the pipe to measure the density, viscosity, and temperature through the productive process.
Sensor measurements：
| Parameter | Range | Accuracy |
| Temperature | -40～120℃ | ±0.3℃（40℃） |
| kinematic viscosity | 1～1000mm²/s（cst） | ±5% |
| Density | 600～1250kg/m³ | ±3% |
| Note: Measurement accuracy is the average value of multiple measurements in a static test in a laboratory environment, and there may be deviations under field conditions due to the influence of the external environment. | ||

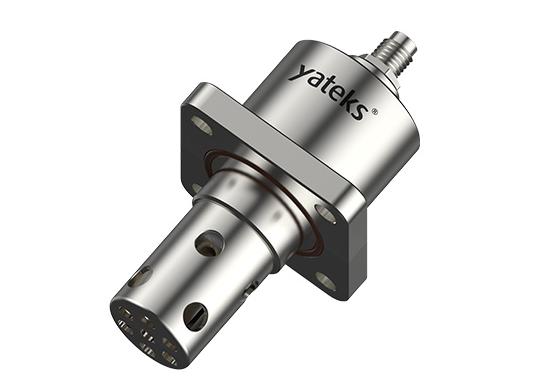

Product Structure：
Features:
- Imported probes, accurate measurement of viscosity, density and temperature up to eight parameters output online monitoring sensor;
- Fast response, the data refresh frequency every second;
- The outer casing is made of stainless steel and has excellent chemical and pressure resistance. The measurement is not affected by external vibration and is suitable for on-line monitoring of robustness requirements;
- Compact structure, easy system integration, on-site calibration of integrated modules;
Application:
YTS31 is widely applied to online monitor the viscosity and density of lubricating oil, hydraulic oil, gear oil, gasoline, diesel oil, jet fuel, kerosene, biodiesel, ethanol, chemical reagent and coating ink.
YS31 is applied to food processing, laboratory, fuel oil storage and transportation ; Oil refining, wind power and other power industries; Aviation, navigation, railway and other transportation industry;Drilling platform and other maritime engineer, mechanical engineering equipment,transportation vehicle,fuel storage and transportation vehicle, oil handling equipment, chemical test and analysis,oil handling and filter system; Coating, painting and other printing industry, medical equipment,etc.
