Instant Viscosity, Density and Temperature measurement for on-site lubricant and industrial fluid monitoring.
Product Description

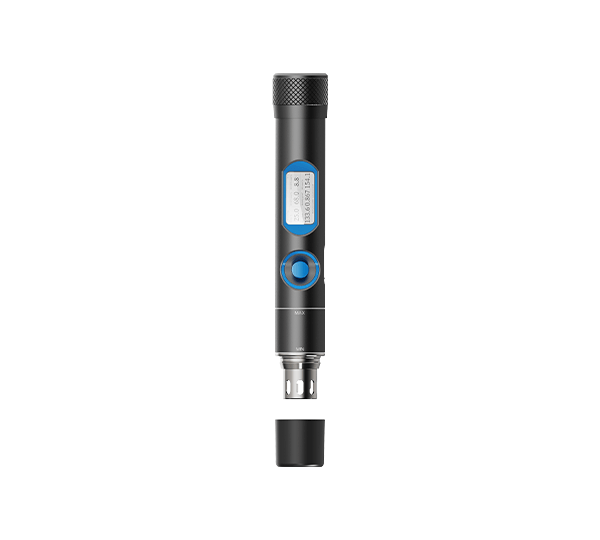

The Yateks ViscoPen is a compact handheld fluid analyzer for rapid on-site testing of diesel fuel, lubricants and industrial fluids. Using piezoelectric resonant MEMS technology, it measures viscosity, density and temperature within seconds. Its pen-style portable design, IP67-rated probe and one-button operation enable fast and reliable fluid condition checks in the field. Protect your diesel powered equipment with immediate identification of paraffin adulteration.
Sensor measurements：
| Parameter |
Range |
Accuracy |
| Temperature |
0–60℃ |
±0.3℃ |
| Density |
600–1250 kg/m³ |
±3% |
| Dynamic Viscosity |
1–1000 mPa·s (cP) |
±5% |
| Kinematic Viscosity |
1–1000 mm²/s (cSt) |
±5% |
| Viscosity @ 40℃ |
1–1000 (cSt) |
±5% ~ ±8% |
| Viscosity @ 100℃ |
1–1000 (cSt) |
±5% ~ ±8% |

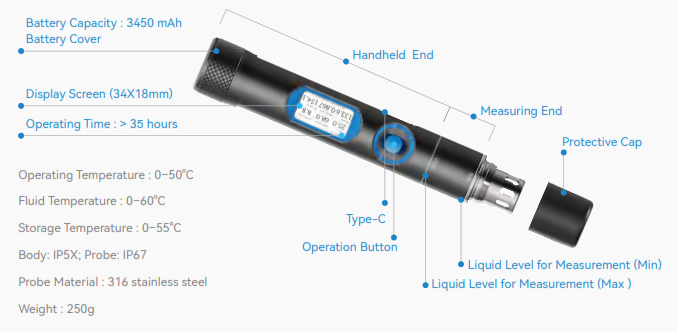

Product Structure：
Features:
Portable & Fast
Compact pen-style design for rapid field measurements
Multi-Parameter Measurement
Viscosity (40 °C / 100 °C), Density and Temperature
Industrial Durability

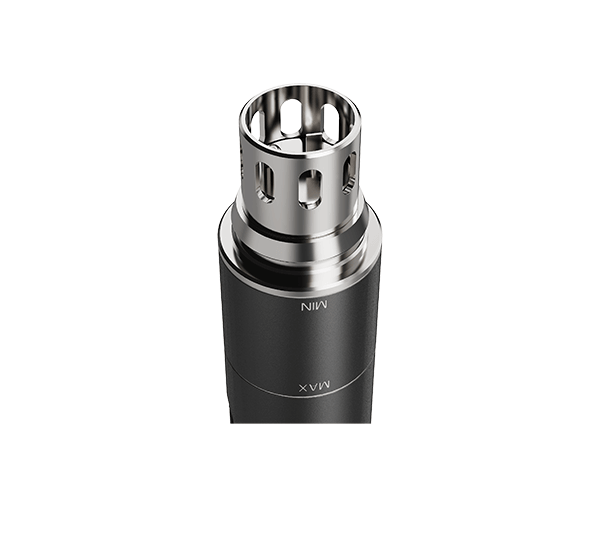

316 stainless steel probe with IP67 protection
Extended Battery Life
Up to 35 hours of operation with USB-C charging
One-Button Operation
No training required
Application:
Designed for industrial lubrication monitoring, Yateks ViscoPen is widely applicable to aerospace, oilfields, ports, transportation, mining, electric power, metallurgy, chemical engineering and construction machinery. It effectively avoids equipment wear and failure resulting from poor lubrication, realizes condition-based oil replacement, and reduces lubricant waste as well as potential equipment breakdown risks. Keeping pace with the industry trend of large-scale, heavy-duty equipment and intelligent operation & maintenance, it delivers high-precision lubrication data to support full-lifecycle equipment condition monitoring.
