YTS-61 Oil condition sensor

YTS61 6-in-1 Oil condition sensor

  • Imported probes, accurate measurement of viscosity, density and temperature up to six parameters output online monitoring sensor;
  • Fast response, the data refresh frequency every second;
  • The outer casing is made of stainless steel and has excellent chemical and pressure resistance.

Get a quote!
Facebook Youtube Linkedin Instagram

YTS61 6-in-1 oil condition sensor uses the world’s advanced piezoelectric resonant MEMS components, through the integrated high-precision signal sampling and processing unit, combined with advanced algorithms, can automatically detect the moisture, density, viscosity, dielectric constant, water activity and temperature.

Sensor measurementsļ¼š

Parameter Range Accuracy
Temperature -40ļ½ž120 ā„ƒ Ā±0.3ā„ƒļ¼ˆ40ā„ƒļ¼‰
Viscosity 1ļ½ž1000mmĀ²/sļ¼ˆcstļ¼‰ Ā±5%
Density 600ļ½ž1250kg/mĀ³ Ā±3%
Dielectric constant 1ļ½ž6 Ā±3%
Water activity
(Saturation)		 0ļ½ž1aw Ā±0.02aw ( 0ļ½ž0.6)
Ā±0.03aw (0.6ļ½ž0.9)
Ā±0.04aw (0.9ļ½ž1)
Moisture content 0ļ½ž5000ppm Ā±10%
Average of multiple measurements
Note: The default YTS61 sensor uses hydraulic oil 68# to calibrate the moisture content detection.

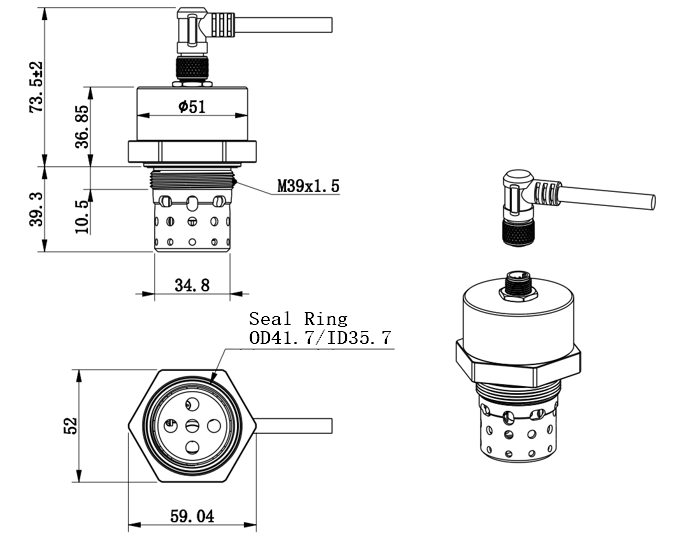

Product Structureļ¼š

Features:

  • High sensitive and precision measurement: sensitively detect the small changes, accurately measurement and consistency.
  • Robust and Reliable: made of SS316 material and suitable for any harsh environment.
  • Fast response: Real-time and continuous monitoring, instant detection and reporting any abnormal situations
  • Ā Intelligent integration: Simple to configure and install, Easy integration with end user’s system.

Application:

YTS61 is widely applied to online monitor theĀ viscosity and density of lubricating oil, hydraulic oil, gear oil, gasoline, diesel oil, jet fuel, kerosene, biodiesel, ethanol, chemical reagent and coating ink.

YS61 is applied to food processing, laboratory, fuel oil storage and transportation ; Oil refining, wind power and other power industries; Aviation, navigation, railway and other transportation industry; Drilling platform and other maritime engineer, mechanical engineering equipment,transportation vehicle,fuel storage and transportation vehicle, oil handling equipment, chemical test and analysis,oil handling and filter system; Coating, painting and other printing industry, medical equipment,etc.

applications of Moisture Sensor





SPECIFICATION

Measurement
Viscosity 1~1000cSt (Accuracy:Ā Ā Ā±5% ~Ā Ā±8%)
Density 600-1250 kg/mĀ³Ā Ā (Accuracy:Ā Ā Ā±2% orĀ Ā±5kg/mĀ³, whichever the larger)
Oil quality(Dielectric constant) 1-6 (Accuracy:Ā Ā Ā±5% )
Moisture content(dissolved water) 0ļ½ž5000PPMĀ (default calibrate with hydraulic oil 68#)Ā  (Accuracy: Ā±10%Ā  OR Ā±10 PPM, whichever the larger)
Water Activity(Humidity/Saturation) 0ļ½ž1 aW OR 0-100% RH (Accuracy:Ā Ā±0.03 aW orĀ Ā±3%)
Temperature 0ļ½ž100ā„ƒĀ (Accuracy:Ā Ā±0.5ā„ƒ)
Flow Rate 0.3 m/s (Additional adjust valve needed if the flow rate is too highļ¼‰
Online pressure <15Ā bar (Higher pressure recommended equip with optional pressure reduce valve)
Specifications
Liquid temperature -40ā„ƒļ½ž120ā„ƒ
Working temperature -40ā„ƒļ½ž85ā„ƒ
Power Supply DC 24VĀ±10%
IP rate IP66
Signal communication RS485 and Can
Mechanical Interface Threaded M39*1.5mm
Cable interface M8*6pin
Material Stainless steelĀ  316
Dimension Length 76.15 x Ļ†52mm
Weight: 0.382KG
