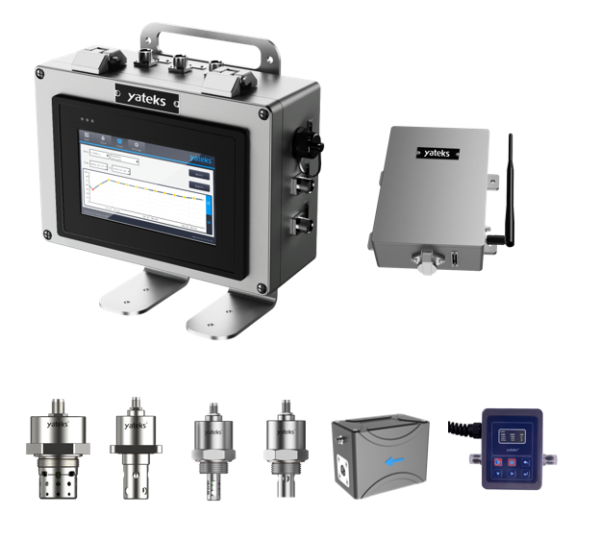

YES70 adopts the form of multi-channel signal acquisition. Aiming at the highly dispersed and multi-point characteristics of large-scale industrial sites, the system adopts the multi-channel single-point acquisition method, aggregates the data in the control system, and carries out the centralised packaged processing data, realising the single-point acquisition and centralised uploading in the field. The control system integrates 4G communication module, display screen and data processing module. It can be adapted to the detection of viscosity, density, dielectric constant, water content, temperature and wear particles. Sensors can be freely replaced according to the site monitoring requirements, suitable for batch deployment in industrial sites.
Sensor measurements：
| Parameter | Range | Accuracy |
|---|---|---|
| Kinematic viscosity | 1-1000cSt | ±5% |
| Density | 600 ～1250 kg/m³ | ±3% |
| Water activuty/Humidity | 0-1aW / 0-100%RH | ±0.03aW / ±3% |
| Moisture content (dissolved water content) |
0-5000ppm | ±10% or ±10 ppm |
| Oil quality (Dielectric constant) | 0-6 Level | ±5% |
| Temperature | 40~120℃ | ±0.5°C |
| Water content (free water & emulsified water ) |
0-10% | ±0.5% |
| Wear particles counting | (Fe particles >40um; five channels Non-Fe particles >150um; five channels) |
The detection rate is not less than 80% |

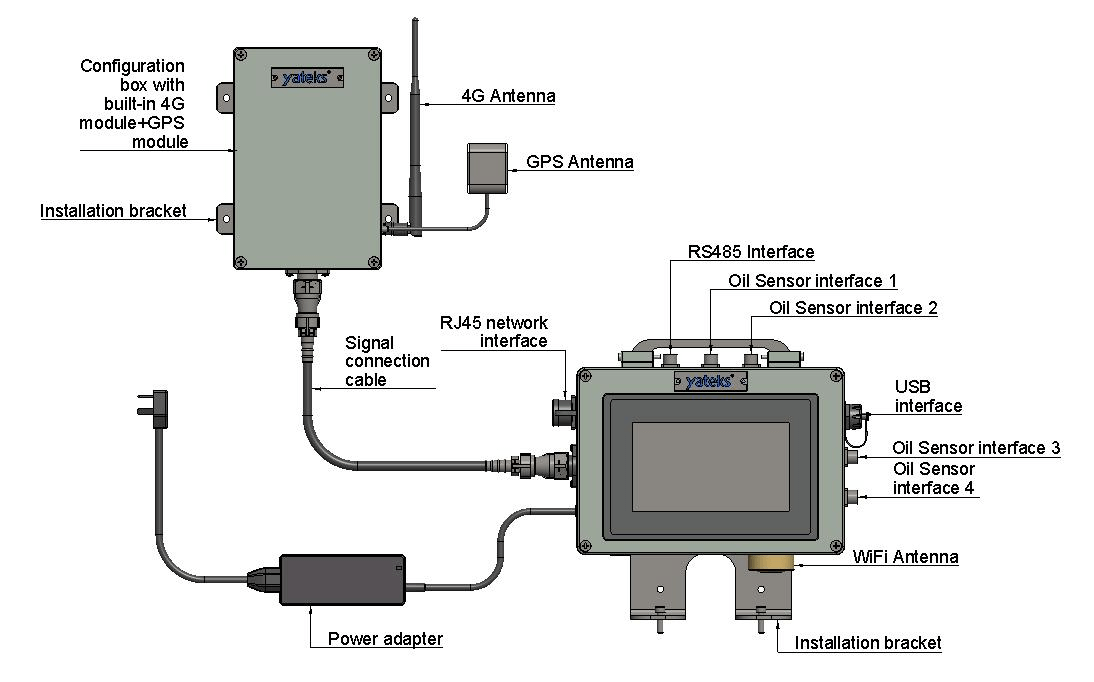

Yateks sensor connect to 7inch display installation diagram：
Application：
Stell
Tunnel boring machine
Petrochemical
Wind power
Electric power system
Marine
Large-scale equipment integration and installation.
…….
